Equil Patch Insulin Pump
Patch Insulin Pump
Tubeless Insulin Pump
—— An Innovative Approach To Continuous Insulin Delivery
  • SMALL
    Only 23g, the entire pump is wearable
  • SIMPLE
    No tubes or wires to worry about
  • SMART
    Intelligent insulin delivery
  • SAFE
    Multiple alarms and sensor system to ensure safety

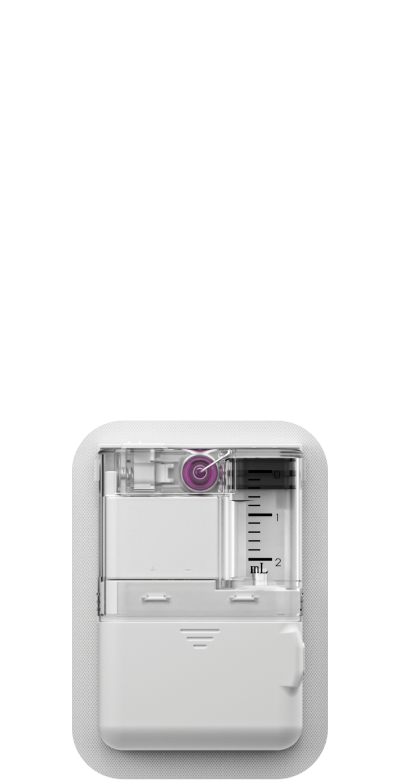

The pump itself only weighs 23 grams.

About the size of a matchbox,the entire worn
device is 59.5×40mm.

Tubeless pump

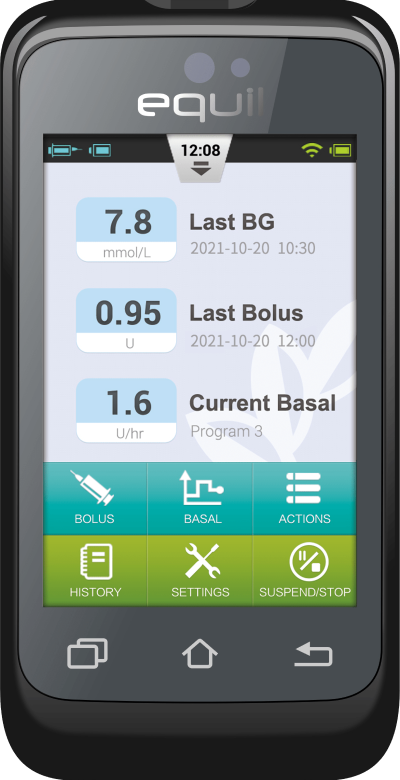

Wireless Portable Diabetes Assistant ( PDA )

  • Patch
  • Traditional
3 Simple Steps
  • Step
    01
    Fill the Reservoir and Assemble the Pump
  • Step
    02
    Administer the Infusion set
  • Step
    03
    Use the Settings Wizard to Initialize the Pump
  • Calculator
  • Temporary Basal Rate
  • Extended Boluses
  • Control
  • Accurate bolus and basal
    increments as small as 0.025U
  • Multiple alarm notifications:
    Audio, Visual, and Vibration
  • Infusion Alerts: Occlusion,
    Low Battery, Reservoir Empty
Patch Insulin Pump System Specs
Specification
Basal rate 0.025 - 35U/h(programmed in increments of 0.025U/h)
Basal programs 3 Basal Programs, each with 48 time segments
Maximum basal rate 0.1-35U/h, Default:1.5U/h
Base basal rate 0.025-35U/h, Default:0.5U/h
Temporary basal rate U/h or % of basal rate, last 3 basal rates remembered, Default is Off
Bolus size 0.025U-25U, 3 Presets
Bolus increment 0.025/0.05/0.1/0.5/1U, Default:0.1U
Max bolus size 1-25U(programmed in 1U increments)
Extended bolus Programmed in U or % of total bolus
Extend time:0.5-8 hours in increments of 0.5 h
Quick bolus On/Off
Quick bolus increment 0.1-2U
